The relative transmission fitness of multidrug-resistant ...

Abstract

Multidrug-resistant tuberculosis (MDR-TB) is among the most frequent causes of death due to antimicrobial resistance. Although only 3% of global TB cases are MDR, geographical hotspots with up to 40% of MDR-TB have been observed in countries of the former Soviet Union. While the quality of TB control and patient-related factors are known contributors to such hotspots, the role of the pathogen remains unclear. Here we show that in the country of Georgia, a known hotspot of MDR-TB, MDR Mycobacterium tuberculosis strains of lineage 4 (L4) transmit less than their drug-susceptible counterparts, whereas most MDR strains of L2 suffer no such defect. Our findings further indicate that the high transmission fitness of these L2 strains results from epistatic interactions between the rifampicin resistance-conferring mutation RpoB S450L, compensatory mutations in the RNA polymerase, and other pre-existing genetic features of L2/Beijing clones that circulate in Georgia. We conclude that the transmission fitness of MDR M. tuberculosis strains is heterogeneous, but can be as high as drug-susceptible forms, and that such highly drug-resistant and transmissible strains contribute to the emergence and maintenance of hotspots of MDR-TB. As these strains successfully overcome the metabolic burden of drug resistance, and given the ongoing rollout of new treatment regimens against MDR-TB, proper surveillance should be implemented to prevent these strains from acquiring resistance to the additional drugs.

Introduction

Antimicrobial resistance (AMR) is an increasing threat to global health and the economy^1,2. A large number of human fatalities caused by AMR are due to multidrug-resistant tuberculosis (MDR-TB)^2,3. Yet, of the estimated 10 million new tuberculosis cases occurring every year around the world, only 3% are MDR³. This relatively small proportion conceals important variability between geographical regions³. In particular, several countries of the former Soviet Union report up to 40% of MDR-TB among their tuberculosis cases³; these countries have thus been recognised as "hotspots" for MDR-TB by the World Health Organization (WHO)⁴. MDR-TB is caused by strains of M. tuberculosis that are resistant to the two most potent anti-tuberculosis drugs, isoniazid and rifampicin³. In the past, poor disease control and patient non-adherence to treatment have been invoked to explain the emergence of MDR-TB hotspots⁵. However, mathematical models and increasing empirical evidence indicate that primary transmission of drug-resistant M. tuberculosis, rather than de novo evolution of resistance within patients, is likely the main driver of MDR-TB^6,7. Modelling studies further predict that one of the most important factors influencing the spread of MDR-TB is the relative transmission fitness of drug-resistant M. tuberculosis compared to drug-susceptible strains^8,9. Empirical studies on the subject have so far been inconclusive, indicating a transmission fitness of drug-resistant M. tuberculosis ranging from 10 times less to 10 times more than drug-susceptible strains (reviewed in ref. ¹⁰). These mixed results partially stem from the fact that few studies have considered the genomic heterogeneity among drug-resistant strains. Experimental studies in many bacteria, including M. tuberculosis, have shown that antibiotic resistance-conferring mutations are often associated with a reduction in pathogen replicative fitness in the absence of drug^11,12, which, however, can be mitigated by compensatory evolution^13,14. Laboratory studies have also shown that the fitness of antibiotic-resistant bacteria is further influenced by epistatic interactions between drug resistance-conferring mutations and the strain genetic background^12,15,16,17. However, no epidemiological study to date has considered the effect of epistatic interactions between drug resistance-conferring mutations, compensatory mutations and different strain genetic backgrounds on the relative transmission fitness of drug-resistant M. tuberculosis.

The purpose of the present study was to explore the role of bacterial genetics in the emergence of an MDR-TB hotspot while controlling for relevant patient and environmental factors. We conduct a nationwide, three-year genomic epidemiological study in Georgia, a country with a high burden of MDR-TB³, and apply phylodynamic methods to quantify and compare the transmission fitness of drug-resistant and drug-susceptible M. tuberculosis strains. We show that the relative transmission fitness of multidrug-resistant M. tuberculosis is heterogeneous, that strains belonging to particular L2/Beijing clones show no defect in relative transmission fitness compared to their drug-susceptible counterparts, and that this high relative transmission fitness likely stems from epistatic interactions between the RpoB S450L rifampicin resistance-conferring mutation, compensatory mutations in the RNA polymerase and other pre-existing genetic features.

Results

The MDR-TB epidemic in Georgia is driven by highly drug-resistant L2 strains

We collected all culture-positive TB cases reported to the Georgian National Centre for Tuberculosis and Lung Diseases (NCTLD) in Tbilisi between 1 January 2014 and 31 December 2016. All phenotypically MDR M. tuberculosis isolates were cultured, DNA extracted and genome sequenced, resulting in 980 high-quality MDR whole-genome sequences; these correspond to 93% of all culture-positive MDR-TB cases reported in Georgia during the three-year study period (Supplementary Fig. 1; these MDR genomes were previously published¹⁸). Similarly, 2,982 fully drug-susceptible M. tuberculosis isolates were processed, which correspond to 90% of all drug-sensitive culture-positive TB cases reported in Georgia during the same time period (Supplementary Fig. 1; these drug-sensitive genomes are reported for the first time here). Patient-related clinical information was available for 2,654 (67%) patients, from whom an M. tuberculosis genome sequence was obtained (Supplementary Data 1). Our phylogenomic analysis of these genomes revealed important differences between the MDR and the drug-susceptible M. tuberculosis populations in Georgia (Fig. 1). We found that four of the nine main M. tuberculosis complex lineages¹⁹ circulate in Georgia at following proportions: 2,266 L4 (57%), 1,675 L2 (42%), 18 L3 (0.5%) and three L1 (0.1%) (Supplementary Fig. 2). While the drug-susceptible population was mostly composed of L4 strains (72%) (Fig. 1A, Supplementary Fig. 2 and Supplementary Fig. 3), the MDR population mainly comprised L2 strains (86%) (χ² (1, N = 3,941) = 1029; P < 0.001) (Fig. 1B, Supplementary Fig. 2 and Supplementary Fig. 3). The majority of these L2 strains belonged to the 'Central Asia' clade and the 'W148' clade, which have also been observed in other countries of the former Soviet Union^20,21,22 (Fig. 2A and Supplementary Fig. 2). Within the MDR populations of L2 and L4, we found that L2 strains carried on average more drug resistance-conferring mutations (median: 6, Q1: 5, Q3: 7) than L4 strains (median: 5, Q1: 4, Q3: 6) (U = 33374, P < 0.001), and that a higher proportion of L2 MDR strains compared to L4 MDR strains were also resistant to streptomycin (99% vs. 70%; χ² (1, N = 980) = 192, P < 0.001), pyrazinamide (69% vs. 33%; χ² (1, N = 980) = 63, P < 0.001), aminoglycosides (58% vs. 38%; χ² (1, N = 980) = 17, P < 0.001) and ethambutol (72% vs. 60%; χ² (1, N = 980) = 7, P < 0.01) (Supplementary Fig. 4 and Supplementary Fig. 5). In summary, our findings show that the epidemic of MDR-TB in Georgia is primarily driven by L2 strains that are resistant to many drugs.

**Fig. 1: The population structure of *M. tuberculosis* in the country of Georgia.**

**Fig. 2: Phylogenies of *M. tuberculosis* genomes from Georgia and other countries.**

L2 MDR strains circulating in Georgia show no reduction in transmission fitness

The strong association between L2 and AMR is consistent with previous studies (reviewed in ref. ¹⁰). At least two hypotheses have been proposed to explain this association. First, L2 strains might have a higher intrinsic mutation rate and therefore be more likely to acquire AMR²³; results from studies addressing this hypothesis have so far been inconclusive^16,24,25,26. Second, L2 might be better able to cope with the physiological changes related to AMR compared to other M. tuberculosis genotypes¹⁰. To test this second hypothesis, we used our genome sequences and applied phylodynamic models²⁷ implemented in BEAST 2²⁸, stratified by M. tuberculosis lineage, to quantify the transmission fitness of MDR strains relative to their drug-susceptible counterparts (Supplementary Table 1), with transmission implying all transmission events giving rise to active TB disease before the end of sampling. These Bayesian methods estimate the transmission rate (TR) per unit of time as well as the effective reproductive number (R_e) based on the phylogenomic information and date of sample isolation (see Methods). In contrast to TR, R_e also takes into account the estimated time during which a patient is infectious. Although the use of time-averaged TR and R_e estimates might mask potential fluctuations in these parameters over time, a previous simulation study showed that this model is appropriate to estimate the relative transmission fitness of MDR-TB²⁹. We found that in L4, MDR strains showed a statistically significant reduction in TR and R_e relative to L4 drug-susceptible strains (Fig. 3C, Fig. 3D and Supplementary Fig. 6). By contrast, L2 MDR strains suffered no significant cost in transmission fitness (Fig. 3A, Fig. 3B and Supplementary Fig. 6).

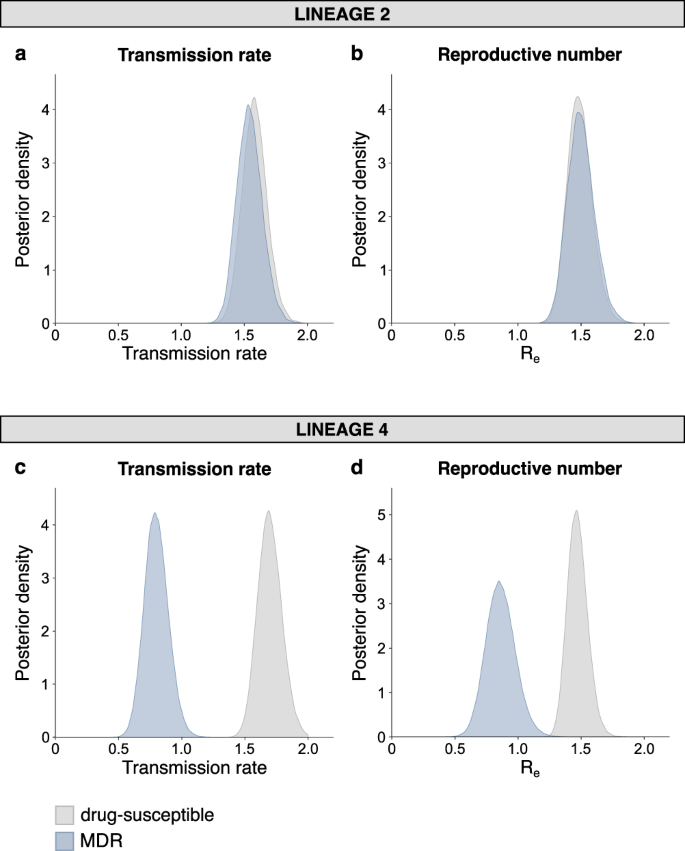

**Fig. 3: The transmission fitness of MDR *M. tuberculosis* compared to drug-susceptible *M. tuberculosis* by lineage.**

To exclude potential confounding by other factors known to influence M. tuberculosis transmission, we applied an additional analytical method to validate our results. We first used TransPhylo to classify the tuberculosis patients into transmitters and non-transmitters (Supplementary Table 2, Supplementary Data 1)³⁰. Next, we combined this information with the corresponding clinical information from each patient (for which this information was available) and conducted a multivariable logistic regression analysis that also controlled for phylogenetic dependence between patient samples³¹. We found that patients infected with MDR strains from L4 were statistically significantly less likely to be transmitters compared to patients infected with a drug-susceptible L4 strain (P < 0.05; Supplementary Table 3). By contrast, in L2, again no significant difference was observed between MDR and drug-susceptible strains (P = 0.20; Supplementary Table 3). These analyses were controlled for clinical variables, including patient age, sex, previous tuberculosis diagnosis, HIV status, and incarceration status (Supplementary Table 3). Finally, we carried out various sensitivity analyses for both analytical approaches outlined above and got similar results (Supplementary Figs. 7–9 and Supplementary Tables 4–7; see Methods for details). Taken together, our findings show that in this M. tuberculosis population from Georgia, L4 MDR strains suffer a clear reduction in transmission fitness compared to their drug-susceptible counterparts, but L2 MDR strains do not.

RpoB S450L is associated with a low fitness cost in L2 MDR strains from Georgia

We next explored the genetic basis for the difference in fitness cost of AMR in L2 compared to L4. Many experimental studies have shown that different drug resistance-conferring mutations can affect bacterial fitness differently. In particular, the mutation S450L in the RpoB subunit of the RNA polymerase of M. tuberculosis that confers resistance to rifampicin has been associated with a low cost of in vitro replicative fitness compared to other RpoB mutations^12,32,33. However, if and how different RpoB mutations affect the transmission fitness of M. tuberculosis in a human population has never been determined. To explore this, we repeated our initial phylodynamic analyses, stratifying by M. tuberculosis lineage and RpoB mutation (i.e., S450L versus any other known rifampicin resistance-conferring mutation). We found that in L2, MDR strains with the S450L mutation showed only a small reduction in fitness compared to drug-susceptible strains, as predicted from the experimental data, whereas in L2 MDR strains carrying other RpoB mutations, the cost in transmission fitness was significantly larger (Fig. 4A, Fig. 4B and Supplementary Fig. 10). By contrast, in L4, all MDR strains showed a strong and statistically significant reduction in transmission fitness compared to their drug-susceptible counterparts, irrespective of the RpoB mutation (Fig. 4C, Fig. 4D and Supplementary Fig. 10). Taken together, these results indicate epistatic interactions between the RpoB S450L mutation and different strain genetic backgrounds that influence the transmission fitness of MDR M. tuberculosis in a lineage-dependent manner.

**Fig. 4: The relative transmission fitness of MDR *M. tuberculosis* by lineage and RpoB mutation.**

Compensation further improves the transmission fitness of L2 MDR strains carrying RpoB S450L

Next, we assessed the potential effect of compensatory evolution on transmission. Several experimental studies in M. tuberculosis and other bacteria have shown that secondary mutations in RpoA, RpoB and RpoC, encoding the alpha, beta and beta-prime subunits of RNA polymerase, respectively, can ameliorate the replicative fitness of rifampicin-resistant bacteria in vitro^{14,34,35,36,37,38,39}. By contrast, the few epidemiological studies addressing the role of compensatory evolution in the transmission fitness of MDR M. tuberculosis in clinical settings have been inconclusive^18,21,40,41. These discrepant findings suggest that when studying diverse populations of MDR M. tuberculosis, the impact of compensatory evolution could also be dependent on particular epistatic interactions with different drug-resistance mutations and/or strain genetic backgrounds. For example, we and others have reported that compensatory mutations in the RNA polymerase of rifampin-resistant M. tuberculosis are strongly associated with the RpoB S450L mutation^26,40,42,43; we also found such an association here, with 98% of compensated strains carrying the RpoB S450L mutation (χ² (1, N = 980) = 293, P < 0.001; see Methods for the definition of compensatory mutations). Based on this observation, one could argue that the transmission success of MDR strains is mainly determined by the RpoB mutation, with no additional effect of compensation. To explore this possibility, we repeated our phylodynamic analyses with further stratification of the MDR strains by the presence or absence of a compensatory mutation in the RNA polymerase. We found that in L2, MDR strains carrying the RpoB S450L mutation and a compensatory mutation in the RNA polymerase had a higher transmission fitness compared to MDR strains carrying only the RpoB S450L mutation. By contrast, no such difference was seen in MDR strains carrying other RpoB mutations (Fig. 5A, Fig. 5B and Supplementary Fig. 11). However, as the number of strains carrying both an RpoB mutation other than S450L and a compensatory mutation was small, no clear conclusion can be drawn with respect to the effect of compensation in these strains. Of note, our TR estimates for L2 indicated an even higher transmission potential for MDR strains carrying the RpoB S450L mutation and a compensatory mutation when compared to drug-susceptible strains, whereas this was not the case for the R_e estimates (Fig. 5A, Fig. 5B and Supplementary Fig. 11). This suggests that while MDR strains carrying the RpoB S450L mutation and a compensatory mutation have a higher transmission rate per unit of time than drug-susceptible strains, patients infected with the former remained infectious for shorter. This decreased time of infectiousness of patients infected with MDR strains carrying the RpoB S450L mutation and a compensatory mutation compared to patients infected with a drug-susceptible strain might be explained by differences in treatment. Upon further analyses, we found that MDR strains carrying the RpoB S450L mutation and a compensatory mutation were strongly associated with resistance to additional drugs and included a higher proportion of extensively drug-resistant tuberculosis (XDR-TB; χ² (1, N = 980) = 8.67, P = 0.0032). In Georgia, new treatment regimens for XDR-TB have been introduced in 2013, which contain bedaquiline; a new and highly effective drug currently only used for highly drug-resistant forms of tuberculosis⁴⁴. We also found that based on their treatment history, XDR-TB patients were more likely to have received bedaquiline compared to other tuberculosis patients (χ² (1, N = 980) = 63.84, P < 0.001). Because bedaquiline-containing regimens are so efficacious, this might have led to a shortening of the infectious period in XDR-TB patients compared to patients with drug-susceptible disease who received the standard first-line regimen. However, more studies on individual patient treatment histories are necessary to confirm this hypothesis.

**Fig. 5: The relative transmission fitness of MDR *M. tuberculosis* by lineage, RpoB mutation and the presence or absence of compensatory mutations.**

Discussion

In this study, we explored the role of bacterial genetics in the MDR-TB epidemic in the country of Georgia, one of the MDR-TB hotspots recognised by WHO. Our findings show that the MDR-TB epidemic in Georgia is driven by particular M. tuberculosis strains belonging to the W148 and Central Asia L2 clades that are resistant to many drugs, and are also prevalent in other countries of the former Soviet Union. Our results further indicate that these L2 strains suffer no defect in relative transmission fitness compared to their drug-susceptible counterparts, partially because most of these strains carry the rifampicin resistance-conferring mutation RpoB S450L, which is associated with a minimal fitness cost in these strains, and additional compensatory mutations in the RNA polymerase.

Our finding that particular L2 strains dominate the MDR M. tuberculosis population in Georgia agrees with previous findings from Georgia and other former Soviet Republics^20,21,22. The general association between L2 and AMR has also been reported before, but the underlying reason for this association has so far remained unclear¹⁰. We found that while L4 MDR strains showed a strong reduction in transmission fitness on average compared to their drug-susceptible counterparts, L2 MDR strains showed no such defect. Importantly, these results were independent of other known clinical risk factors for tuberculosis transmission. Taken together, these findings indicate that some of the L2 MDR strains from Georgia can better tolerate the physiological effects of drug resistance compared to other strains.

When exploring the genetic characteristics of these L2 MDR strains, we noticed that a high proportion of these strains carried the RpoB S450L mutation that was associated with a small negative effect on the transmission fitness when compared to drug-susceptible counterparts. By contrast in L4, all MDR strains had a much more reduced relative transmission fitness compared to drug-susceptible L4 strains, irrespective of the RpoB mutation. Several experimental studies have shown that the same RpoB S450L mutation can have a different fitness effect depending on what M. tuberculosis genotype this mutation occurs in^12,32,33,34. One possible mechanism for this phenomenon was proposed in a recent experimental study, in which M. tuberculosis clinical strains with the same RpoB S450L mutation showed distinct gene expression patterns, both at the transcriptional and translational level³⁴. Moreover, the in vitro reproductive fitness of these strains correlated with the degree of overall proteome perturbation³⁴. Such epistatic interactions between drug resistance mutations and strain genetic background will likely be further influenced by the presence of additional drug resistance and compensatory mutations, both known and unknown⁴⁵. As shown in Fig. 6, our MDR strains carried a large array of additional drug resistance-related mutations. Each of these additional mutations could be influencing the fitness effect of every other mutation in a given strain in a unique way, making mechanistic studies aiming at elucidating these epistatic interactions in more detail quite daunting. In addition, the highly clonal population structure and genome-wide linkage of M. tuberculosis prevents the use of standard analytical tools used in recombining bacteria⁴⁶.

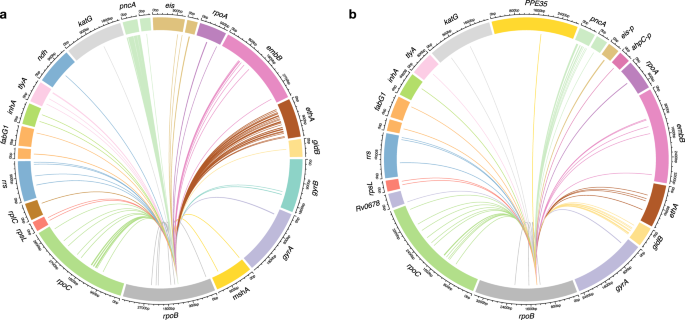

**Fig. 6: Interactions with additional drug resistance-related mutations and compensatory mutations in MDR *M. tuberculosis* L2 and L4 strains that carry the RpoB S450L mutation.**

With respect to known compensatory mutations, our results showed that L2 MDR strains with RpoB S450L and a compensatory mutation in the RNA polymerase had a higher relative transmission fitness than L2 MDR strains carrying only the RpoB S450L mutation. These findings complement previous experimental data^14,34,35,47, and indicate that compensatory evolution in MDR M. tuberculosis can restore both its replicative fitness in vitro as well as its transmission fitness in a human population. We were unable to detect a signal of compensation in L4 MDR strains, despite similar profiles of compensatory mutations in L2 and L4 strains (Supplementary Fig. 12). This might be due to the fact that only 53% of L4 MDR strains carried the RpoB S450L mutation; as shown here and previously^26,40, known compensatory mutations are strongly associated with the RpoB S450L mutation. A striking observation was that MDR strains carrying the RpoB S450L mutation and a compensatory mutation were associated with a shortened infectious period. This could potentially be explained by a higher frequency of bedaquiline treatment in these patients, a hypothesis that would need to be confirmed by follow-up studies.

The positive effect of the epistatic interactions between different drug resistance-conferring mutations and compensatory mutations on the transmission fitness of MDR strains in Georgia might also be linked to our observation that 99% of L2 MDR strains were also resistant to streptomycin, with 66% of them carrying a high-level resistance mutation in rpsL (K34R). A recent experimental study in Escherichia coli showed that strains resistant to both rifampicin and streptomycin were more likely to acquire a compensatory mutation that enhanced their competitive fitness compared to strains that were resistant to only one of these drugs⁴⁸.

Taken together, our findings suggest that the high transmission fitness of the L2 MDR strains circulating in Georgia is a consequence of multiple epistatic interactions between particular L2 genetic backgrounds, the RpoB S450L resistance-conferring mutation, and compensatory mutations in the mycobacterial RNA polymerase. However, these genetic features are unlikely on their own to fully explain the epidemiological success of these L2 MDR genotypes in Georgia and other MDR-TB hotspots of the former Soviet Union, given the additional resistance-related mutations and genomic complexities illustrated in Fig. 6. For example, 98% of L2 MDR strains carried the KatG S315T mutation that confers resistance to isoniazid. This mutation has previously been shown to be associated with a low fitness cost both in vitro and in clinical settings^49,50 and might thus contribute to the epidemiological success of these L2 MDR strains. Only 86% of L4 MDR strains carried this mutation (χ² (1, N = 980) = 4, P < 0.001). Furthermore, other genomic characteristics unrelated to drug resistance but specific to certain M. tuberculosis genotypes might also play a role. When further stratifying our M. tuberculosis phylogeny, we observed that L2 in Georgia mainly comprised the two sublineages 'Central Asia' and 'W148', which included many MDR strains (Fig. 2; Supplementary Fig. 13). By contrast, the different sublineages of L4 mainly included drug-susceptible strains. This observation suggests that M. tuberculosis genotypes like 'Central Asia' and 'W148' are particularly well adapted to tolerate drug resistance and maintain a high transmission potential.

Previous work has suggested that mass incarceration in the former Soviet Republics contributed to the emergence of MDR-TB hotspots and these highly drug-resistant and transmissible M. tuberculosis strains^18,51. The data presented here indicate that these strains are by now well established in the general population, and with their high transmission fitness are the driving force behind the epidemic of MDR-TB in Georgia and neighbouring countries (Fig. 2). Many of these countries are recognised MDR-TB hotspots, and our data suggest that bacterial genetics play an important role in maintaining the high prevalence of MDR-TB in these regions by allowing for efficient human-to-human transmission of highly drug-resistant strains. Our findings serve as a warning in a time when novel bedaquiline-containing regimens for MDR-TB are being rolled out massively across the world, including in Georgia and other MDR-TB hotspots⁴⁴. In absence of adequate surveillance, there is a danger that highly drug-resistant and transmissible strains such as the ones described here will acquire additional resistance to these new regimens⁵².

Our study has several limitations. First, our measure of transmission does not include transmission events that did not yet give rise to active TB disease before the end of our study. However, given most infected patients develop active disease within a few months of being infected⁵³, we expect to have captured the majority of transmission events. Furthermore, any bias resulting from this will likely be systematic and therefore unlikely to affect the relative differences in transmission fitness between MDR and drug-susceptible M. tuberculosis strains.

Second, our sampling timeframe was only three years. However, the fitness estimates from our phylodynamic analyses represent averages since the time of introduction of the different M. tuberculosis strains, thereby providing insights into the history of the MDR-TB epidemic in Georgia. Consequently, R_e estimates above 1 imply that the epidemic has been growing on average, and do not contradict the current decline of TB case numbers in Georgia³. Moreover, our estimates of the relative transmission fitness of the different bacterial variants under study correspond well to their current prevalence in Georgia, suggesting that selection has, on average, acted as predicted by our estimates.

Third, the results of our multivariable logistic regression analysis might have been affected by missing data, as only 67% of the genomes analysed had complete clinical records. However, we do not expect the results to be biased, as the proportion of missing data was evenly distributed among the variables.

Fourth, a potential confounding factor in our study was that M. tuberculosis strains carrying more drug resistance-conferring mutations might be more difficult to cure, and as a consequence, patients might have remained infectious for longer, which would have increased their overall transmission success. While we cannot exclude this possibility, our estimates of the TR per unit of time, which are not influenced by the duration of patient infectiousness, always showed a higher value for L2 MDR compared to L4 MDR, indicating that the effects of the RpoB mutation with or without compensatory mutations are more important. Moreover, L2 MDR strains generally harboured more additional resistance-conferring mutations compared to their L4 counterparts, irrespective of the presence or absence of the RpoB S450L mutation, supporting the fitness effect of this latter mutation.

In conclusion, our study shows that the transmission of MDR M. tuberculosis in Georgia is heterogeneous and can be as efficient as that of drug-susceptible strains. Our results also highlight the importance of bacterial genetic factors in the emergence and maintenance of MDR-TB hotspots. In the context of the global rollout of novel treatment regimens against drug-resistant M. tuberculosis, proper surveillance should be implemented to detect highly transmissible strains resistant to novel antibiotics.

Methods

Study population

Between 1 January 2014 and 31 December 2016, we prospectively collected all M. tuberculosis strains from bacteriologically confirmed TB cases arriving at the National Reference Laboratory (NRL) of the National Center of Tuberculosis and Lung Diseases (NCTLD) in Tbilisi, Georgia. This sample collection included all pulmonary forms of TB, including drug-susceptible, mono-resistant, poly-resistant and MDR/XDR. To compare the transmissibility of the MDR strains to that of the drug-susceptible strains, only the pan-susceptible (3,326) and MDR (1,059) M. tuberculosis strains were included in the study. We then performed whole-genome sequencing of 3,168/3,326 drug-susceptible strains and 1,047/1,059 MDR strains (Supplementary Fig. 1). Phenotypically drug-susceptible M. tuberculosis strains were examined for the presence of drug resistance mutations and only strains that had no resistance-conferring mutation were included (Supplementary Fig. 1). Similarly, we only included genomes that had mutations conferring resistance to at least rifampicin and isoniazid (markers for the MDR phenotype). After further exclusion of genomes that did not fulfil our criteria for genome quality, we obtained 3,962 high-quality whole-genome sequences (Supplementary Fig. 1). Patient-related clinical data, including age, sex (assigned by the clinician), HIV status, incarceration status and previous episode of TB, were collected through routine diagnostic work at the National Centre for Tuberculosis and Lung Diseases in Tbilisi, Georgia (Supplementary Data 1). The prevalence of drug-susceptible and MDR strains during the sampling period did not show any statistically significant trend over time (Supplementary Fig. 3).

Ethical approval

The institutional Review Board of the National Centre for Tuberculosis and Lung Disease in Tbilisi, Georgia and the Ethics Commission of North- and Central Switzerland granted ethical approval for this study. The ethics committees put off the need for collecting individual patient consent since only limited and anonymized clinical data were collected. In addition, results from this study are regularly communicated to Georgian public health authorities.

Genome sequencing and bioinformatics analyses

M. tuberculosis genomic DNA was extracted as described in the protocol from Belisle and Sonnenberg⁵⁴. Sequencing libraries were constructed using the NEBNext Ultra II FS DNA Library Prep Kit for Illumina and were sequenced with an Illumina NovaSeq 6000 and an Illumina HiSeq 2500 platform, generating 35–151 bp paired-end reads and 101–126 bp single-end reads. On average, 2.76 million (range: 130,000 – 19 million) reads per run were generated, which translates to a mean sequencing depth of 66x (range: 17 – 365). All sequencing runs were carried out at the genomics facility of the University of Basel and the Department of Biosystems Science and Engineering at ETHZ in Basel, Switzerland. The whole-genome sequences were run through a variant-calling pipeline developed in house. Trimmomatic v33⁵⁵ was used to i) remove the Illumina adapters allowing for 2 mismatches, ii) scan the reads with a 5 bp sliding window approach and trim when the average quality per base drops below 20, iii) remove the resulting reads when shorter than 20 bp. For paired-end data, SeqPrep was used to identify and merge any overlapping reads, when the overlap was at least 15 bp long. The resulting processed reads were aligned to an inferred ancestor of the M. tuberculosis Complex (10.5281/zenodo.3497110) using BWA v0.7.13⁵⁶. Pysam v0.90 (https://github.com/pysam-developers/pysam) was used to remove reads that had a mapping quality score lower than (0.93*read_length)-(read_length*4*0.07), corresponding to >7 mismatches per 100 bp. The MarkDuplicates module of Picard (http://broadinstitute.github.io/picard/) was used to flag duplicated reads. GATK v3.4.0⁵⁷ RealignerTargetCreator and GATK IndelRealigner were used to perform a more sensitive alignment of reads in regions that contain indels. SAMtools v1.2⁵⁸ mpileup and VarScan v2.4.1⁵⁹ were used to generate a pileup file from the realigned BAM and call variants. The mpileup2cns module of VarScan was used to report all positions (reference, SNPs and indels) that meet the thresholds for defined parameters. Parameters set for VarScan were: minimum mapping quality of 20, minimum base quality at a position of 20, minimum read depth at a position of 7x, minimum variant frequency of 10%, minimum variant frequency for fixed SNPs of 90% and maximum strand bias for a position of 90%. Variants were annotated and their effect on genes was predicted using SnpEff v4.1⁶⁰. L2 strains were further classified into sublineages using the nomenclature and genomic markers defined in Shitikov et al⁶¹. L4 strains were further classified into sublineages using the nomenclature and genomic markers defined in Stucki et al⁶².

Multiple sequence alignment and phylogenetic reconstruction

The VCF of all positions was used to create a consensus fasta sequence. Chromosomal positions that were covered by less than 7 reads were treated as missing data (encoded by 'X'); so were unfixed positions (variant frequency between 10 and 90%) and positions that shared > = 50 bp sequence identity with other regions of the genome or regions known to be repetitive (PPE/PGRS gene family, phages, insertion sequences, maturase). Positions that were not present in the VCF (covered by 0 reads) correspond to large deletions and were encoded by a dash. The variable alignments were assembled by removing invariant sites and sites that had more than 10% of missing data. Finally, drug resistance-related genes were also excluded from the alignment. In total, five different variable SNP alignments were produced: one for the pan-susceptible M. tuberculosis population (Fig. 1A), one for the MDR M. tuberculosis population (Fig. 1B), one for the L2 MDR M. tuberculosis population together with publicly available L2 MDR genomes from the rest of the world (Fig. 2A), one for the L4 MDR M. tuberculosis population together with publicly available L4 MDR genomes from the rest of the world (Fig. 2B), and one for the whole dataset (Supplementary Fig. 2). The variable SNP alignments were used to generate maximum likelihood phylogenies with RAxML v8.2.11⁶³, using the general time-reversible model of nucleotide substitution with the CAT approximation of rate heterogeneity. Since the SNP alignments did not contain the invariant sites, we corrected the likelihood for ascertainment bias using the Lewis correction⁶⁴. The phylogenies were rooted on M. canettii (SRR011186). We used ggtree v3.3.1⁶⁵ to annotate the phylogenies.

Selection of MDR M. tuberculosis 'context' sequences

We ...
